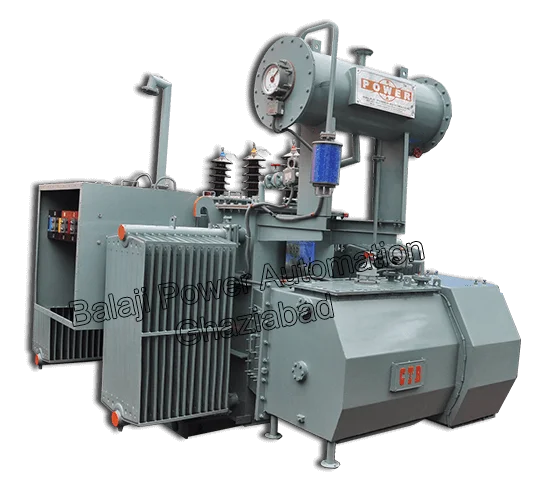

Distribution Transformer

Distribution Transformers

Balaji Power Automation is recognized as a high quality distribution transformer manufacturers and is listed collectively of the highest makers, Suppliers and Exporters of Distribution Transformer.

We manufacture power transformers as per IS 2026, IS 6600, IEC 60076 & IS 1180 standards.
● Distribution Transformer manufacturing range: Upto 2500 KVA, 33kV.
● Method of cooling: Oil Natural Air Natural (ONAN) / Oil Natural Air Forced (ONAF)

RANGE :  100 KVA to 2500 KVA in 11, 22 & 33 KV Class.

Technical Specifications:

Power RatingUpto 2500 KVA (2.5 MVA)
Input Voltage(HV Side)Upto 33 KV
Output Voltage(LV Side)Upto 11 KV
TypeHermetically Sealed / Free Breathing
Cooling MethodOil Cooled / Air Cooled
Rated FrequencyAccording to Client’s requirement
Tap Changing MethodOn-Load / Off-Load
Vector GroupAccording to Client’s requirement
No-Load LossesAccording to Client’s requirement
Load LossesAccording to Client's requirement
Percentage ImpedanceAccording to Client’s requirement
Applicable StandardIS 1180, 2026 & IEC 60076

Standard Fitting:

  • Rating & Diagram plate
  • Lifting lugs
  • Oil Conservator with drain plug
  • Oil Level indicator
  • Top-filter Valve
  • Silica gel breather
  • Cooling radiators
  • Earthing terminals
  • Thermometer pocket
  • Air release hole with plug
  • Explosion vent with diaphragm
  • Inspection cover.
  • Drain –cum-bottom-filter valve
  • Uni / Bi- directional rollers

Advantage of Distribution Transformer:

  • Help to improve the efficiency of the electrical power system
  • Help to improve the quality of the electrical power (They do this by reducing the amount of power that is lost in transmission and by providing a more stable voltage.)


Transformer Optional Parts (Charge Extra):

  • Transformer with tap changer/ without tap changer (usually below 200 KVA)
  • Cooling Tubes/ Radiators/ Corrugated Tanks
  • Pole Mounted/ Ground Mounted
  • Free Breathing (conventional type)/ Hermetically Sealed
  • With or without a conservator
  • CSP (completely self-protected)/ Non CSP
  • Indoor Type/ Outdoor Type
  • Accessories on Request
  • LV and HV cable boxes
  • Winding temperature indicator (WTI).
  • Buchholz relay
  • Marshalling box
  • Disconnecting chamber
  • Oil temperature indicator with electrical contacts (OTI)
  • Pressure relief valve.

What is Distribution Transformer?

A distribution transformer is a device that transforms electrical energy from one form to another. It is an essential component of the electrical power grid, providing a link between generating stations and load centers. Transformers come in a variety of sizes and shapes, but all share the same basic principle of operation. There are three main types of power transformers:

  1. Step-up transformer: This type of transformer increases the voltage of the electrical energy.
  2. Step-down transformer: This type of transformer decreases the voltage of the electrical energy.
  3. Isolation transformer: This type of transformer provides electrical isolation between two circuits.

Application of Distribution Transformer:

  • Industries,
  • Power Generating Stations,
  • Receiving Stations, Substations
  • Railways
  • Chemical
  • Pharmaceuticals
  • Steel
  • Hydro Power Projects
  • Textile
  • Engineering
  • Plastic
  • Cement
  • Refineries
  • Mining
  • Captive Power Projects
  • Wind Mill Farms
  • Construction Houses
  • Pharma
  • Electrical,
  • Electronics,
  • Renewable Energy,
  • Automobile
